At Pump Supplies we're immensely proud to be the exclusive Australian and New Zealand supplier of PLEUGER Industries’ products. Renowned globally for their quality, reliability, and innovation, PLEUGER's range aligns perfectly with our commitment to deliver only the best to our customers.
PLEUGER Industries, a respected name in the industry, specialises in the design and manufacturing of highly efficient submersible motor pumps and thrusters. Their products are synonymous with top-tier performance and durability, offering solutions that cater to a variety of applications.
Our exclusive partnership allows us to bring these superior pump technologies to you. Whether your needs revolve around water management, offshore operations, or industrial processes, we're confident that our PLEUGER range can deliver the performance and reliability you seek. Trust in Pump Supplies and PLEUGER Industries to power your productivity and efficiency.
In addition to PLEUGER products, we are proud to offer the Franklin Electric ISO end suction and vertical multistage pump ranges. End suction pumps are versatile and widely used, known for their efficiency and durability, while vertical multistage pumps excel in delivering high pressure in water supply systems.
Every unit we assemble or repair, regardless of type, undergoes thorough testing before dispatch to ensure optimal performance. With us, you can be confident in the integrity and efficiency of your pump solutions.

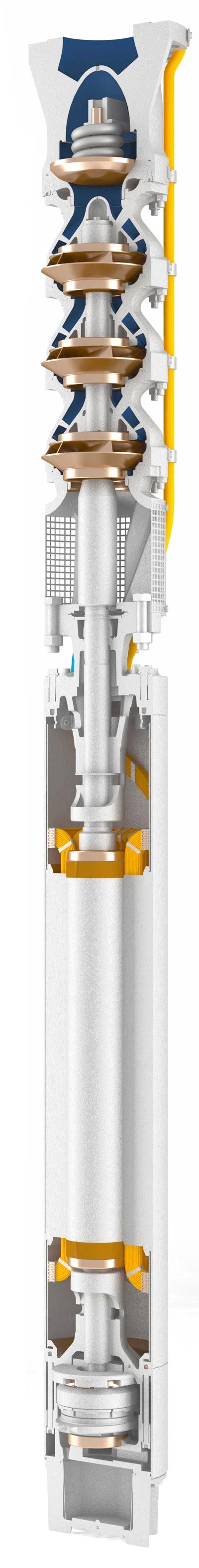

BOREHOLE SUBMERSIBLE
Advantages
Designed, assembled and tested at our Christchurch facility
Pump and motor engineered in-house to ensure end‑to‑end quality
Versatile product sizes and designs for all application areas
Fully trimmable impellers enable pump to be engineered to precisely match system requirements
Reinforced winding insulation allows VSD use without dV/dt filter in most cases
Applications
Municipal water supply (water extraction and pressure boosting)
Agriculture (irrigation)
Mining (dewatering and water supply)
Offshore (seawater lift, firefighting and caisson drain pumps)
Geothermal well service
Technical
Discharge flows from 1m3/hr to 7,000m3/hr
Discharge heads from 2m to 700m
Non-return valves with threaded or DIN/ANSI flange connection
Water filled rewindable motors from 5.5kW to 5 MW
Permanent magnet motors from 5kW to 200kW
Voltage Range 230V to 6.6 kV (11kV on request)
Multiple materials available

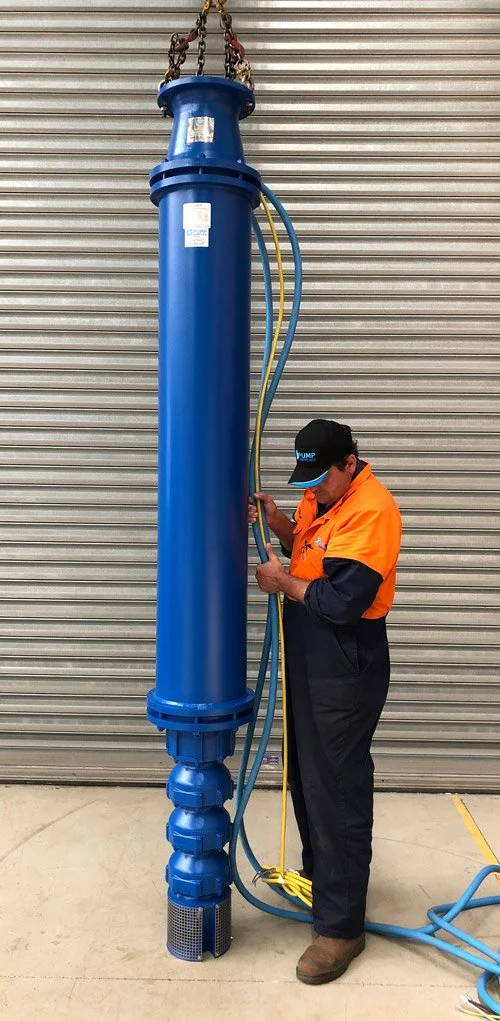

BOTTOM INTAKE (POLDER) PUMPS
With all the advantages and technical features of the standard deep well borehole submersible, in this configuration the motor is located above the pump and the intake is in the pumps lower section enabling the pump to operate at the lowest of water levels in applications such as river water extraction or open pit mine drainage.
These pumps can be engineered for vertical or inclined installation according to your specific site requirements.

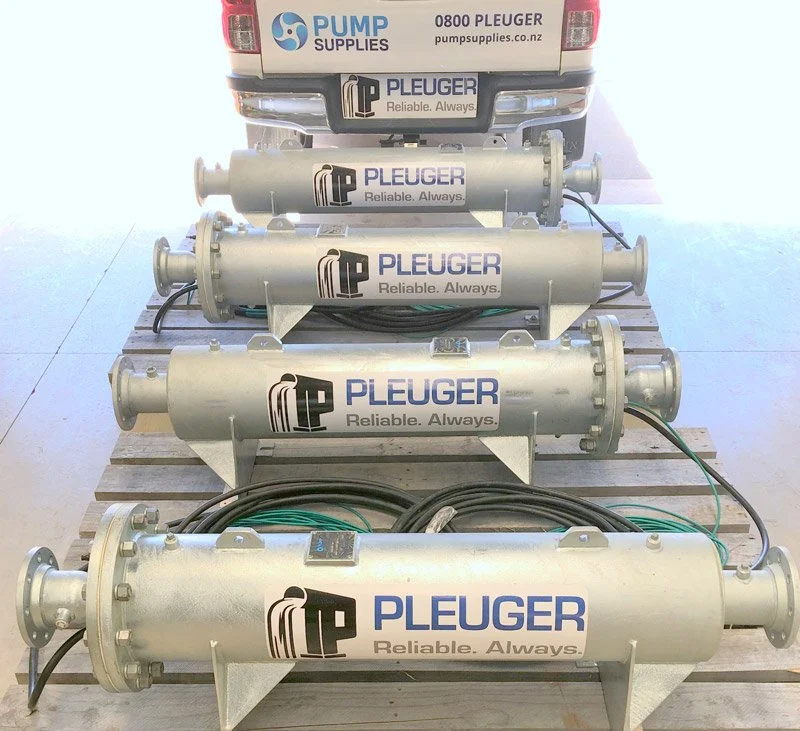

BOOSTER PUMPSET
PLEUGER booster pump units consist of a borehole submersible pump mounted within a galvanised steel casing which can be integrated horizontally or vertically into the system to increase pressure in pipeline networks. Casings are engineered to order for your specific site requirements.
FLOOD PUMP STATION
Single and multi-stage flood pumps with axial hydraulic impeller design and water‑filled motors are designed to process large volumes of water at low pressures. They can cover flow rates from 100 m³/h to 20,000 m³/h at heads up to 9m.
Being installed horizontally, pump chamber depth is minimised which provides for significant savings over conventional vertical axial flow pump types which require deep excavations, particularly where poor ground conditions or a high water table are encountered.

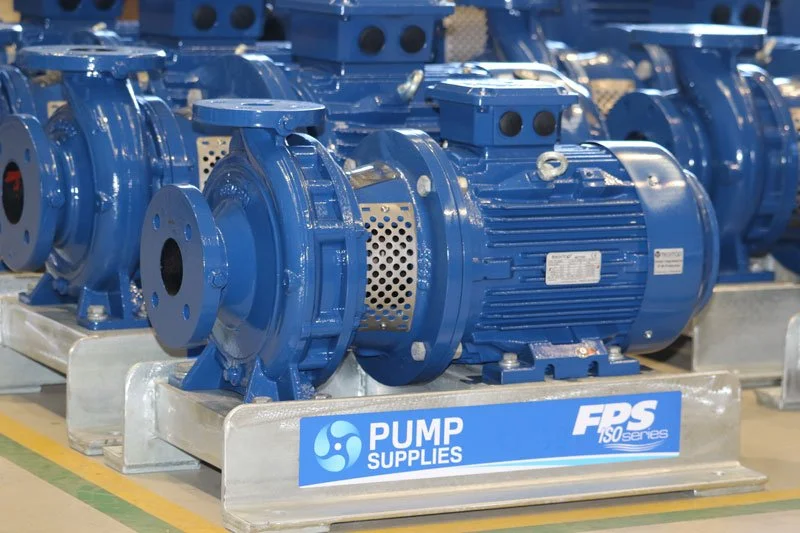

FRANKLIN ISO END SUCTION
Designed and manufactured to internationally recognised ISO.2858 standard, the FPS ISO pump is manufactured to the highest quality utilising best engineering practice available. The pumps are designed for industrial and agricultural applications utilising highest grade materials for demanding applications. The superior quality and design provides reliability of operation with minimum maintenance.
Cast iron body casting with stainless steel impellers as standard
Bareshaft for direct coupling to electric motors, engines or pulley drives
Direct coupled to 2 pole and 4 pole IEC motor configurations
All bare shaft pumps fitted with greased for life bearings
Bearing housings fitted with heavy duty deep groove ball bearings
FRANKLIN VERTICAL MULTISTAGE
The VR series vertical multistage pump features three material configurations, each with all stainless steel hydraulics for superior durability, efficiency and performance over a wide variety of applications including pressure boosting, water transfer, reverse osmosis and irrigation.
Ratings : 1,3,6,10,15,20,30,45,65 and 95m3/hr
All stainless steel hydraulics
Rugged motor mounting with oversized ball bearings ensure long operating life in toughest application
In-line suction and discharge with round flanges fit widest range of applications and provide convenient, compact installation
Rugged IEC mount electric motors produced to AU/NZ market standards

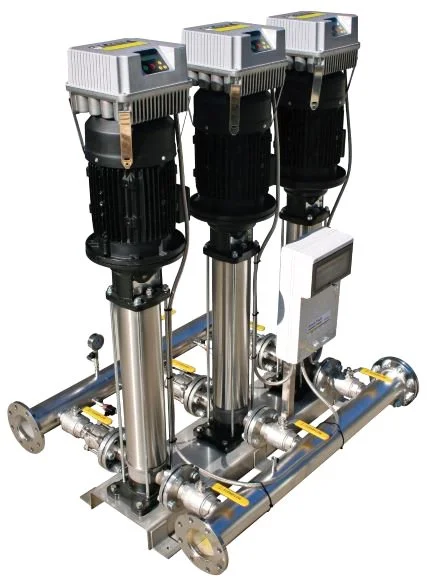

VR Series Base Ups
Off‑the-shelf or designed to your needs, our VR pumpsets are available in various combinations of pumps, bases and drives all prewired, tested and ready to be installed.

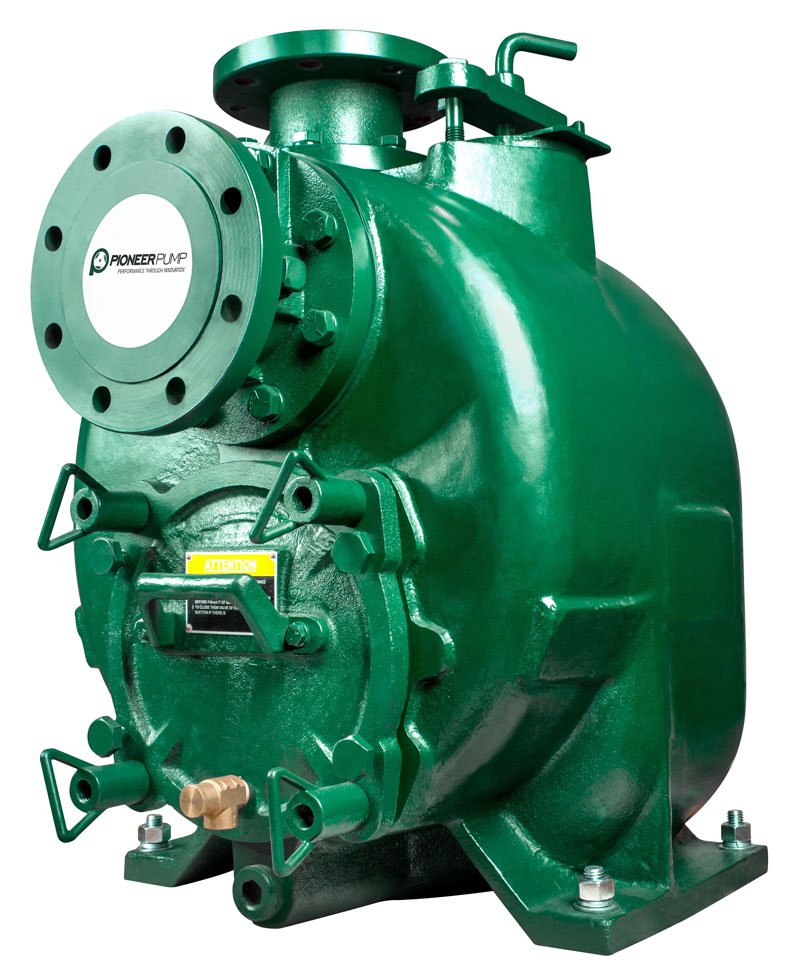

PIONEER WET PRIME
Pioneer self-priming pumps are designed for reliable solids and clear liquid handling. After initial prime, they continue to reprime automatically.
Rely on the best materials – standard heavy wall ductile iron volute and 17–4 PH stainless steel shaft for durability and peace of mind
Get peak performance – a simple external shimless impeller adjustment means the user can easily adjust the tolerance between the impeller and wear‑plate
Trust our seals – cartridge type tungsten vs silicon carbide mechanical seal makes for ease of maintenance and simple operation
